n8n Explained: AI Workflow Automation Platform Guide

Your team is drowning in repetitive tasks that tools like Zapier can’t handle—or charge a fortune to automate. Every day, hours vanish into manual data transfers, copy-paste operations between apps, and monitoring workflows that should run themselves. The cost isn’t just financial—it’s the innovation you’re not shipping, the customers you’re not serving, and the burnout creeping through your organization.

n8n is the fair-code, AI-powered workflow automation platform that gives you the control, flexibility, and intelligence to build real workflows—without the platform lock-in. Unlike proprietary SaaS tools that meter every step and lock your data behind their infrastructure, n8n runs on your terms: self-hosted on your servers, customizable with full JavaScript and Python support, and equipped with a Next-Gen Automation Engine that lets your workflows run agents, read files, troubleshoot systems, and hold full conversations.

By the end of this guide, you’ll understand exactly what n8n is, how to deploy it for free in under 10 minutes, and how to build your first AI agent that can autonomously handle tasks your team currently does manually. Whether you’re a solo developer, a mid-sized marketing team, or an enterprise DevOps organization, this is your blueprint for mastering n8n in 2025.

Key Takeaway

n8n is a fair-code, open-source workflow automation platform that connects apps, APIs, and AI models through a visual, node-based editor. It empowers technical and non-technical users to build intelligent, autonomous workflows without vendor lock-in or per-task pricing restrictions.

• Self-hostable alternative to Zapier and Make with 500+ integrations
• Built-in AI agent builder for creating intelligent, autonomous workflows
• Free Community Edition available; cloud and enterprise plans for managed hosting
• Designed for both technical and non-technical users seeking full control

What is n8n? Understanding the Next-Gen Automation Platform

n8n represents a fundamental shift in how organizations approach workflow automation. At its core, n8n is a fair-code automation platform that uses a visual, node-based editor to connect applications, APIs, and AI models into sophisticated workflows. Unlike traditional automation tools that charge per execution or lock you into proprietary infrastructure, n8n gives you complete ownership of your automation logic and data.

The platform emerged in 2019 as a response to the limitations of existing automation tools. While competitors like Zapier and Make offered convenience, they came with significant trade-offs: escalating costs at scale, limited customization options, and zero control over where your data lives. n8n solved these problems by making the platform self-hostable, extensible with custom code, and transparent in its pricing model.

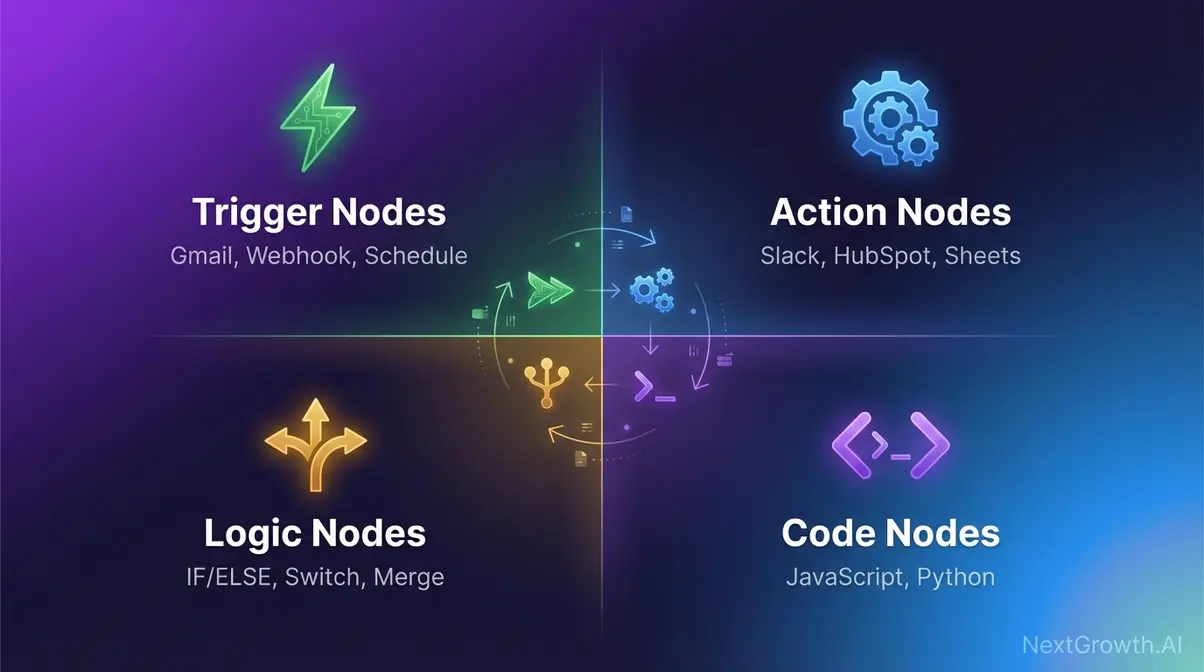

The Core Architecture: How n8n’s Node-Based System Works

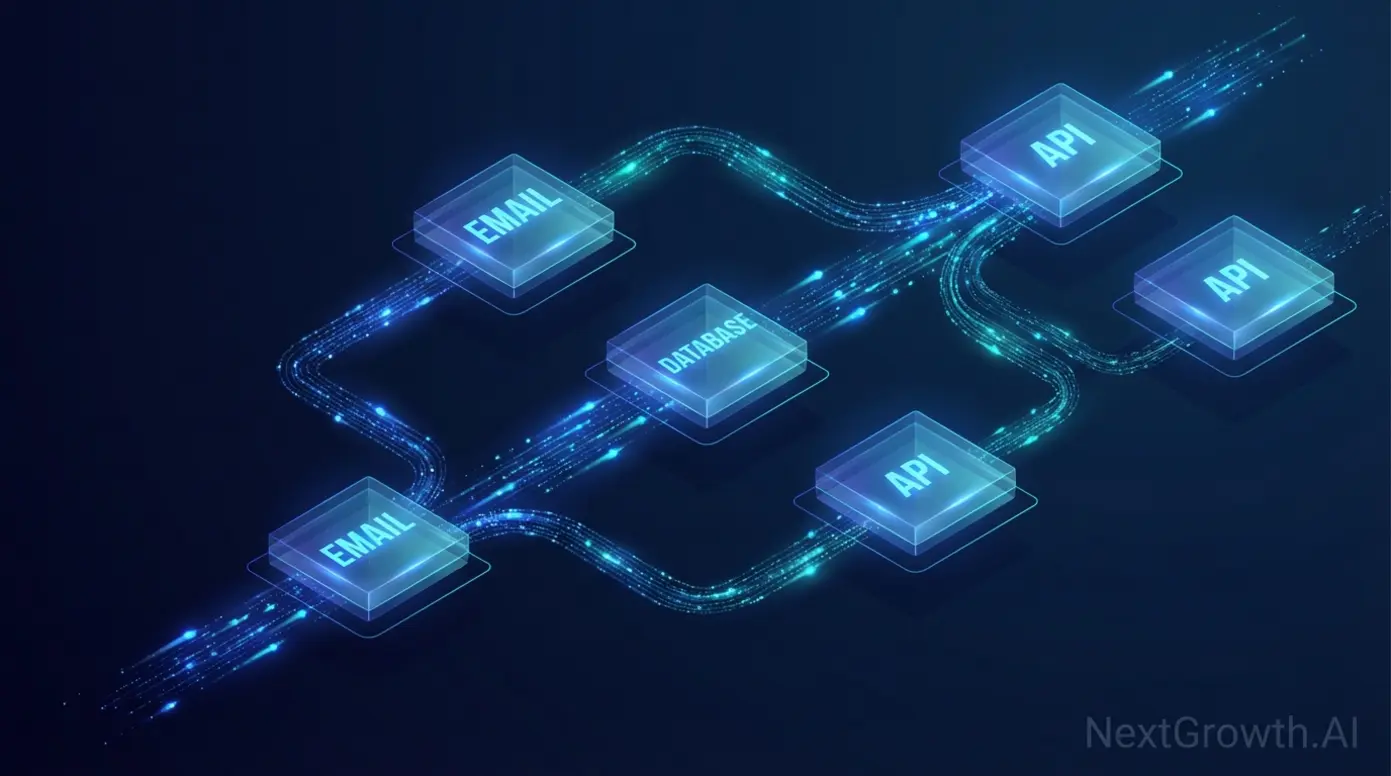

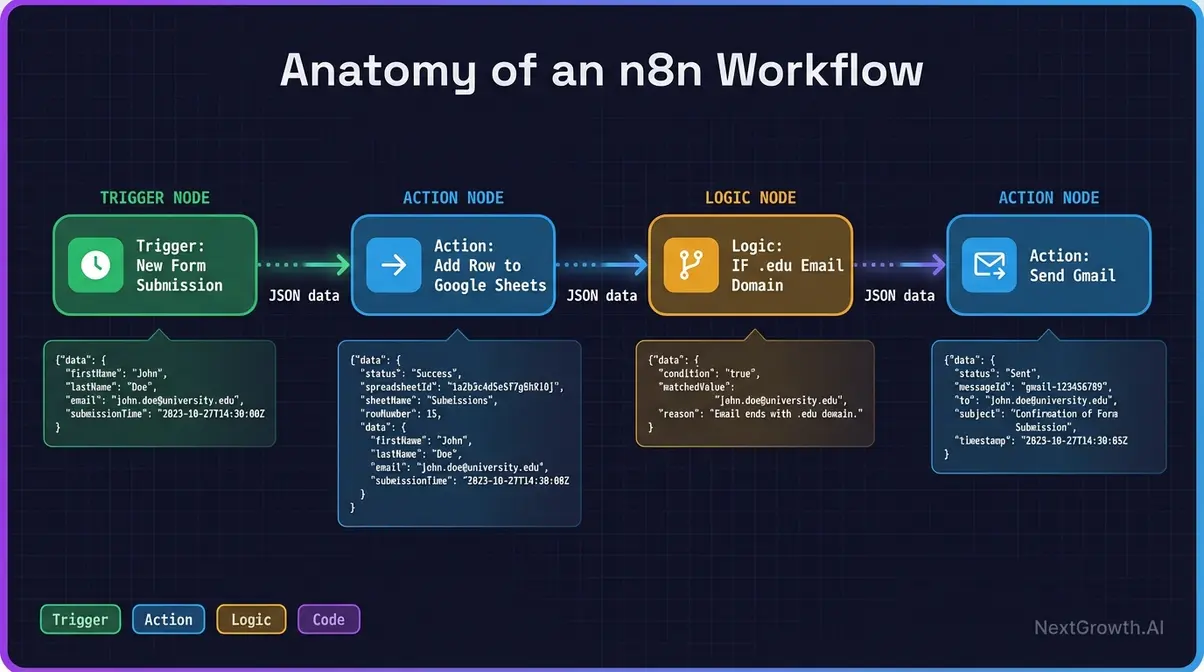

The n8n node-based editor transforms complex automation logic into visual flowcharts that anyone can understand. Each workflow consists of nodes—individual building blocks that represent specific actions, triggers, or logic operations. Data flows between these nodes sequentially, with each node processing, transforming, or routing information based on your configuration.

A workflow begins with a trigger node that initiates execution. This could be a manual button click, a scheduled time (e.g., “every Monday at 9 AM”), or an external event like a webhook receiving data from another application. Once triggered, the workflow proceeds through action nodes that perform specific tasks: sending an email, writing to a database, calling an API, or running custom JavaScript code. Logic nodes add conditional branching, loops, and data transformation capabilities that enable sophisticated decision-making within your automations.

Consider a practical example: When a new email arrives in your inbox (trigger node), n8n can extract any attachments (action node), upload them to Google Drive (action node), and send a Slack notification with the file link (action node). The entire process executes automatically, with each node passing data to the next in a clear, traceable sequence. According to the official n8n GitHub repository, this architecture supports over 400 integrations and native AI capabilities as of 2025, making it one of the most versatile automation platforms available.

The visual editor makes workflows self-documenting. Unlike traditional scripts buried in code repositories, n8n workflows serve as living documentation that technical and non-technical team members can understand at a glance. This transparency accelerates onboarding, simplifies debugging, and enables collaborative workflow development across departments.

n8n’s Fair-Code Model: What It Means for You

n8n operates under a fair-code license called the Sustainable Use License—a model that balances open access with sustainable business practices. This license grants you the freedom to use, modify, and self-host n8n without restrictions, with one key limitation: you cannot sell n8n as a competing service to other organizations. For the vast majority of users—from solo developers to Fortune 500 enterprises—this restriction is irrelevant.

The fair-code model differs fundamentally from both traditional open-source and proprietary software. Unlike fully open-source projects (Apache, MIT licenses), n8n’s license prevents competitors from simply repackaging the software and undercutting the original creators. Unlike proprietary SaaS tools, n8n gives you complete access to the source code, the ability to self-host on your infrastructure, and zero vendor lock-in. You own your data, your workflows, and your automation infrastructure.

This matters profoundly for organizations with strict data governance requirements. When you self-host n8n, sensitive customer data, API credentials, and business logic never leave your network. You can deploy n8n in air-gapped environments, behind corporate firewalls, or in compliance-certified data centers. Financial institutions use this capability to automate processes involving PII without exposing data to third-party SaaS providers. Healthcare organizations leverage it to build HIPAA-compliant workflows that process patient information entirely within their own infrastructure.

The fair-code model also ensures long-term sustainability. Because n8n can monetize through managed cloud hosting and enterprise support, the project attracts full-time developers who continuously improve the platform. This stands in contrast to many open-source projects that struggle with funding and eventually stagnate. As confirmed by the fair-code licensing details on GitHub, you get the best of both worlds: the transparency and flexibility of open source with the reliability and innovation of a well-funded commercial product.

Who Uses n8n? From Startups to Enterprises

n8n serves a remarkably diverse user base, from individual developers to global enterprises. This breadth reflects the platform’s unique positioning: powerful enough for complex enterprise use cases, yet accessible enough for solo practitioners to deploy in minutes.

Solo developers and freelancers use n8n to automate client reporting, invoice generation, and project management workflows. A typical setup might involve automatically pulling data from Google Analytics, enriching it with custom calculations, generating PDF reports, and emailing them to clients—all triggered on a schedule. Because the Community Edition is free to self-host, these users can build sophisticated automations without recurring SaaS fees eating into their margins.

Mid-sized marketing and operations teams leverage n8n to orchestrate multi-step campaigns and data pipelines. A marketing team might build a workflow that monitors social media mentions, scores sentiment using an AI model, routes high-priority mentions to sales via Slack, and logs everything to a CRM. The visual editor enables non-technical marketers to modify and extend these workflows without depending on engineering resources, dramatically accelerating iteration cycles.

Enterprise DevOps and IT teams deploy n8n for incident response, monitoring, and infrastructure automation. A production-grade setup might include workflows that detect anomalies in application logs, automatically create tickets in Jira, trigger remediation scripts, and notify on-call engineers via PagerDuty. These organizations often run n8n in Queue Mode with multiple worker nodes to handle thousands of executions per day, taking advantage of the platform’s horizontal scalability and fault tolerance.

The common thread across these use cases is control. Whether you’re a solo developer protecting client data, a marketing team avoiding per-execution pricing, or an enterprise meeting compliance requirements, n8n gives you the infrastructure ownership that proprietary tools cannot offer.

n8n’s AI Capabilities: Building Intelligent Agents

n8n transcends traditional workflow automation by enabling you to build agentic AI systems—autonomous workflows that reason, retrieve information, and execute multi-step tasks without human intervention. This capability positions n8n as a platform for creating intelligent automation, not just connecting apps.

The platform’s AI capabilities center on its built-in AI agent builder, which treats large language models (LLMs) as reasoning engines that can orchestrate other tools. Unlike simple chatbots that respond to predefined prompts, n8n ai agents can analyze context, decide which tools to use, execute actions, and iterate based on results. This enables workflows that can troubleshoot systems, hold full conversations with users, and adapt to changing conditions—capabilities that would require extensive custom development in traditional automation platforms.

The Built-In AI Agent Builder: An Overview

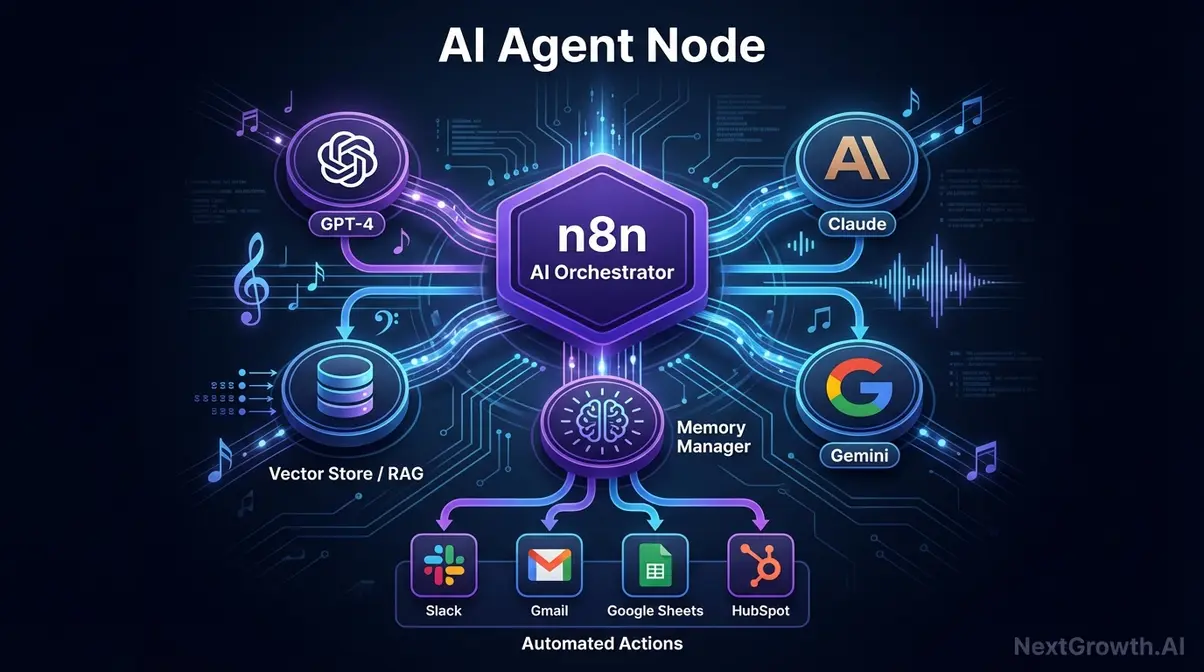

The n8n AI agent builder transforms workflows into intelligent systems by combining LLMs with executable tools. At its core, an agent consists of three components: a reasoning engine (the LLM), a set of tools (n8n nodes that the agent can invoke), and a memory system that maintains context across interactions.

When you configure an n8n ai automation, you define the agent’s capabilities by connecting tool nodes—such as database queries, web searches, API calls, or file operations. The agent receives a user query, analyzes what needs to be done, determines which tools to use and in what sequence, executes those tools, and synthesizes the results into a coherent response. This process happens autonomously, with the agent making decisions based on its training and the specific context of each request.

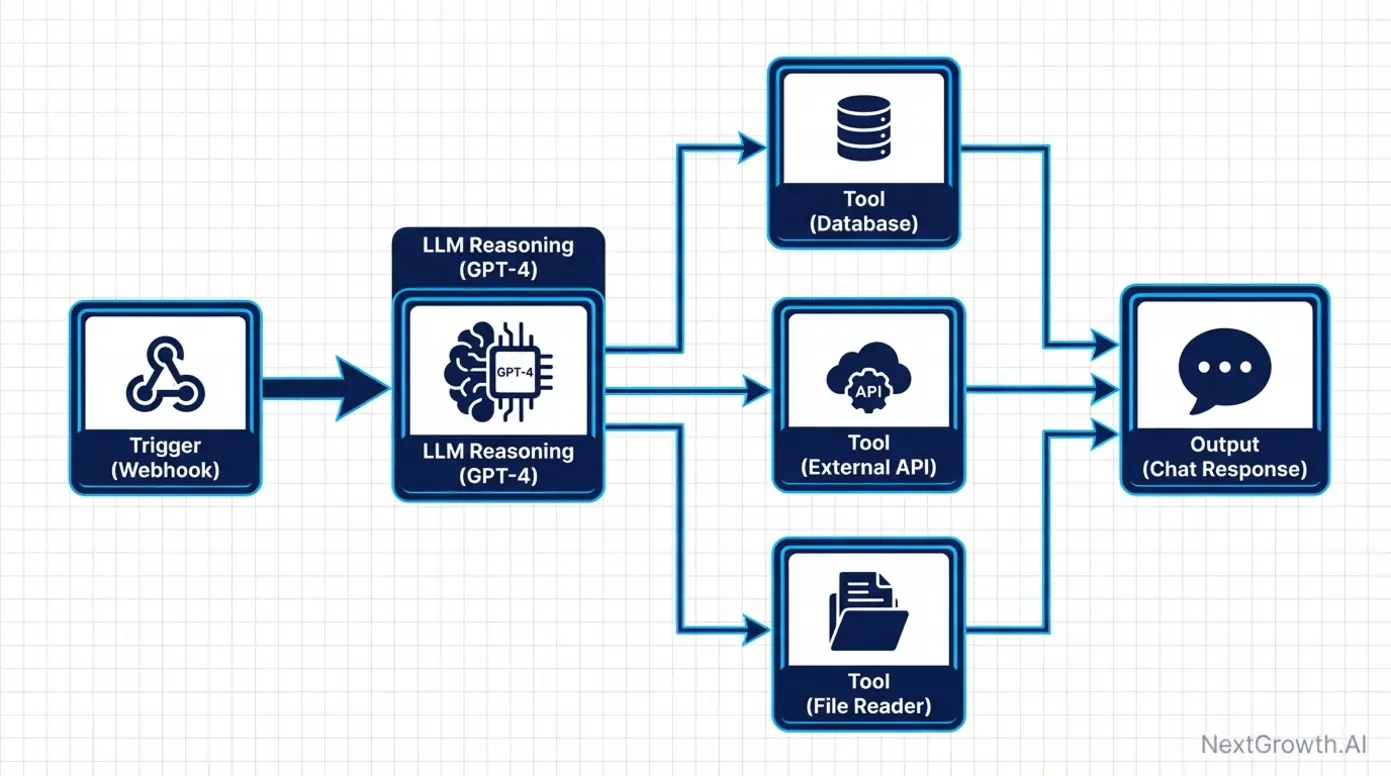

The diagram below illustrates how an AI agent orchestrates multiple tools to accomplish complex tasks:

What distinguishes n8n’s approach from simple LLM integrations is the tight coupling between the reasoning engine and your existing automation infrastructure. The agent doesn’t just call APIs—it can invoke entire sub-workflows, access your organization’s data sources, and execute business logic that you’ve already built. According to n8n’s official AI capabilities page, the platform allows users to build advanced AI workflows by combining AI agents with over 500 integrations and custom code to gain more control over outputs as of 2025.

The agent builder supports multiple LLM providers—OpenAI’s GPT models, Anthropic’s Claude, Google’s Gemini, and even locally-hosted open-source models via Ollama. This flexibility means you can choose the model that best fits your use case, budget, and data privacy requirements. Enterprise teams often run local LLMs to ensure sensitive data never leaves their infrastructure, while startups might use cloud-hosted models for convenience and performance.

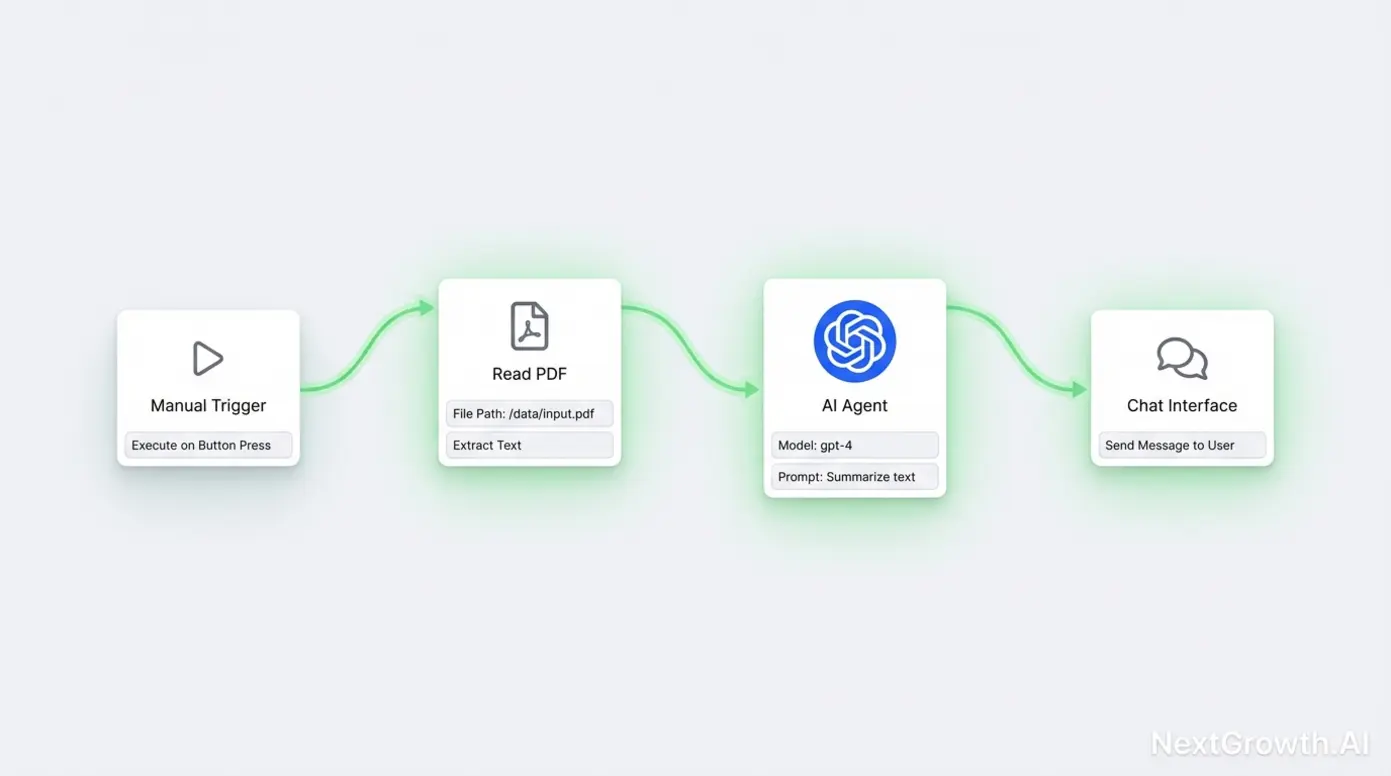

Step-by-Step: Building Your First AI Agent (File Reader Example)

Building your first n8n ai agent requires no prior AI experience—just a clear understanding of what task you want to automate. This tutorial walks through creating a document analysis agent that can read PDFs and answer questions about their content.

Step 1: Set Up the Manual Trigger Node

Create a new workflow and add a Manual Trigger node. This allows you to test the agent interactively before deploying it with automated triggers. The Manual Trigger provides a simple “Execute Workflow” button that initiates the agent when you’re ready to test.

Step 2: Add the Read PDF Node

Connect a “Read Binary Files” node to extract content from your PDF. Configure the node with either a local file path (for self-hosted instances) or a URL pointing to the document. The node outputs the PDF’s text content as structured data that subsequent nodes can process.

Step 3: Configure the AI Agent Node

Add an “AI Agent” node and connect it to the PDF reader output. In the agent configuration:

• Select your LLM provider (OpenAI, Anthropic, etc.) and enter your API key
• Set the system prompt: “You are a document analyst. Answer questions about the following PDF content: {{$json.content}}”
• Enable the “Use Tools” option to allow the agent to access additional capabilities if needed

The `{{$json.content}}` syntax injects the PDF text from the previous node into the agent’s context, giving it the information needed to answer questions. The complete workflow should look like the screenshot below.

Step 4: Add a Chat Interface Node

Connect a “Chat” node to simulate a conversation with the agent. This node provides a simple interface where you can type questions and receive the agent’s responses. In production workflows, you might replace this with a Slack integration, web form, or API endpoint.

Step 5: Test the Agent

Execute the workflow and ask: “What is the main topic of this document?” The agent will analyze the PDF content, identify key themes, and provide a structured answer. Try follow-up questions like “Summarize the key findings in bullet points” or “What recommendations does the author make?” to see how the agent maintains context across the conversation.

Expected output: The agent should provide accurate, contextual answers based solely on the document’s content. If it hallucinates or provides information not in the PDF, refine your system prompt to emphasize: “Only answer based on the provided document. If the information is not in the document, say ‘I don’t have that information.'”

This basic pattern—trigger, data source, AI agent, output—forms the foundation for more complex automations. You can extend this workflow by adding tools for web search, database queries, or API calls, transforming the agent from a simple document reader into a research assistant that can cross-reference multiple sources.

Advanced AI Use Cases: RAG Pipelines and Multi-Tool Agents

Once you’ve mastered basic n8n ai agent workflows, you can tackle production-grade use cases that deliver transformative business value. Two patterns stand out for their versatility and impact: Retrieval-Augmented Generation (RAG) pipelines and multi-tool agents.

RAG Pipelines: solve the fundamental limitation of LLMs: they can only reason about information in their training data or immediate context window. For organizations with proprietary knowledge bases, product documentation, or historical records, this creates a gap. RAG bridges that gap by embedding your documents into a vector database (like Pinecone, Qdrant, or Weaviate), then using an AI agent to retrieve relevant chunks before answering questions.

A typical n8n agentic rag implementation works as follows: When a user asks a question, the agent first queries the vector database to find the most relevant document sections. It then feeds those sections into the LLM’s context window along with the original question. The LLM synthesizes an answer based on your actual data, not generic training information. This pattern enables AI agents that can answer questions about your company’s internal processes, technical documentation, or customer history with accuracy that generic LLMs cannot achieve.

Multi-Tool Agents: represent the next evolution: workflows where the AI agent can autonomously decide which tools to use and in what sequence. Consider a customer support automation: The agent receives a complaint via email, searches your knowledge base for relevant solutions, checks the customer’s account status in your CRM, generates a personalized response, and logs the interaction in your support database—all without human intervention.

Building multi-tool agents in n8n requires careful prompt engineering and tool design. Each tool (node) must have a clear description that helps the agent understand when to use it. For example, a “Search Knowledge Base” tool might be described as: “Use this when the user asks a question that might be answered in our documentation. Returns relevant article snippets.” The agent uses these descriptions to build an execution plan, similar to how a human would break down a complex task into steps.

These advanced patterns are production-ready and used by n8n’s community for real business applications. For a concrete example of multi-step automation in action, explore a real-world SEO automation use case that demonstrates how agents can orchestrate research, analysis, and data storage workflows autonomously.

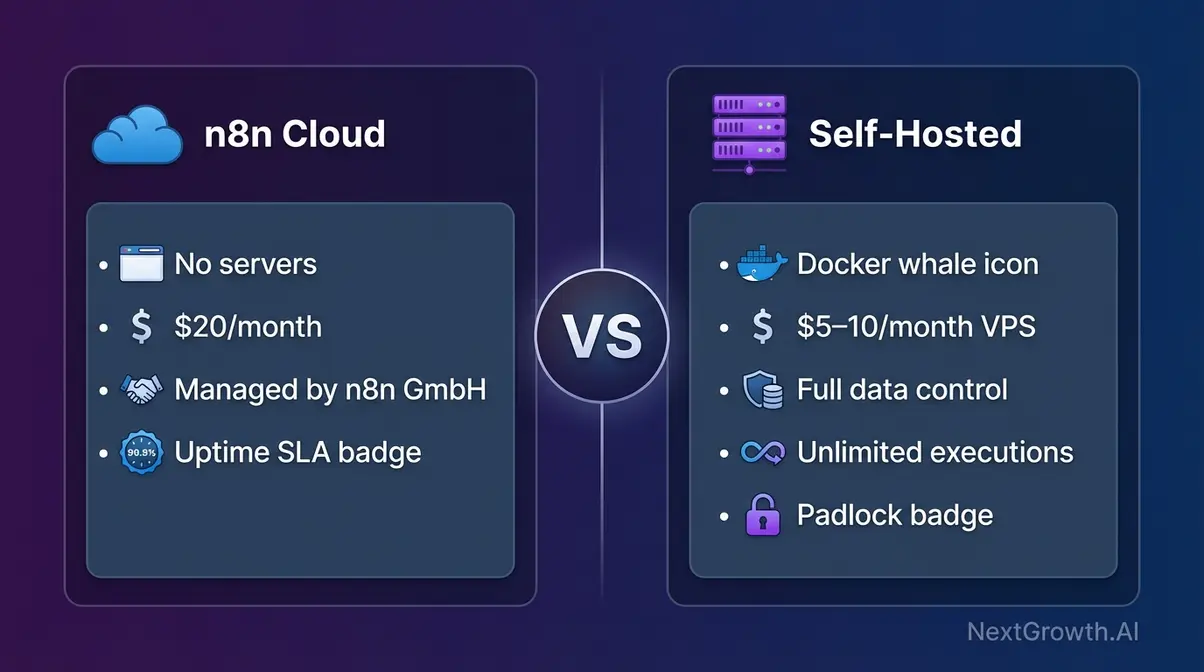

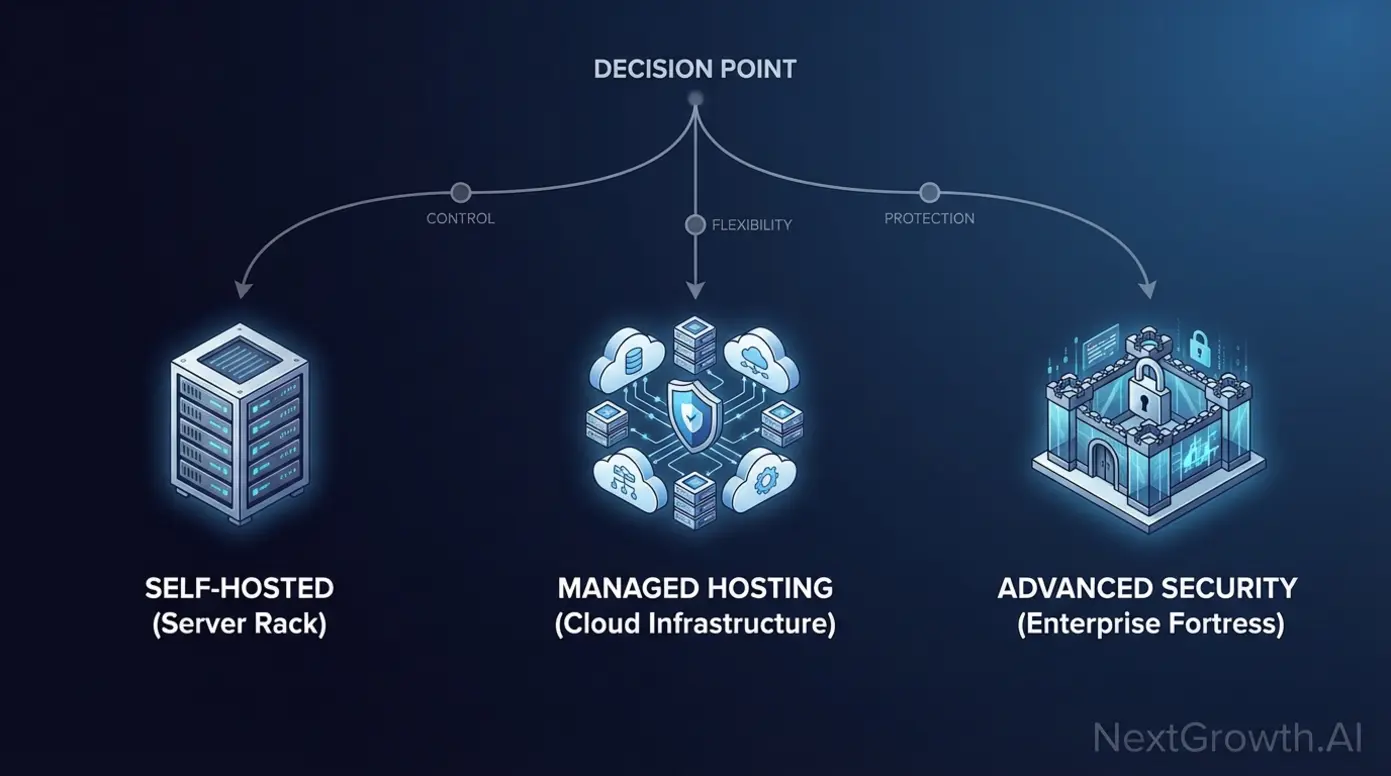

Pricing & Plans: Choosing the Right n8n Edition for You

n8n offers three primary deployment options, each optimized for different use cases, technical capabilities, and budget constraints. Understanding these options enables you to choose the most cost-effective and operationally appropriate solution for your organization.

The pricing model differs fundamentally from competitors like Zapier or Make. Instead of charging per task or per step, n8n charges based on successful workflow executions (for cloud plans) or requires you to manage your own infrastructure (for self-hosted). This creates significant cost advantages at scale, particularly for organizations running thousands of automations per day.

Community Edition (Self-Hosted): Features & Limitations

The n8n Community Edition provides the full feature set of the platform at zero software cost. You can self-host it on any infrastructure—from a $6/month DigitalOcean droplet to enterprise Kubernetes clusters—and run unlimited workflows with unlimited executions. The only costs are infrastructure and operational overhead.

According to the official documentation, the Community Edition includes all core automation capabilities, the AI agent builder, 500+ integrations, and custom code support. The primary limitations are operational rather than functional:

The seven-day execution history limitation means you can only review workflow logs from the past week. For debugging and compliance purposes, this may be insufficient. However, you can extend this by configuring external logging systems (covered in the Security & Scalability section).

The Community Edition is ideal for organizations with existing DevOps capabilities who want maximum control and minimal recurring costs. If you can manage Docker deployments, handle security updates, and configure backups, the Community Edition delivers enterprise-grade automation at infrastructure-only pricing.

Cloud Plans: When to Choose Managed Hosting

n8n’s Cloud offering eliminates operational overhead by providing fully managed hosting with guaranteed uptime, automatic updates, and built-in monitoring. The pricing model charges per successful workflow execution rather than per step, creating predictable costs that scale linearly with usage.

As detailed on the official pricing page, n8n’s model is based on successful workflow executions, unlike other tools that may charge per step or user. The current tiers (as of 2025) are:

• Starter Plan: $20/month for 2,500 workflow executions
• Pro Plan: $50/month for 10,000 workflow executions
• Enterprise Plan: Custom pricing for 50,000+ executions

Each execution counts as one complete workflow run, regardless of how many nodes or steps it contains. This contrasts sharply with Zapier’s per-task pricing, where a 10-step workflow consumes 10 tasks. For complex automations with multiple steps, n8n’s execution-based pricing can reduce costs by 80% or more compared to step-based competitors.

Choose Cloud when:

• Your team lacks DevOps expertise or bandwidth to manage infrastructure
• You need guaranteed uptime with SLAs (99.9% for Pro and Enterprise plans)
• You want to start building workflows in under five minutes without any setup
• Your workflow volume fits comfortably within a pricing tier (avoiding the need for custom infrastructure scaling)

The Cloud offering provides the same feature set as self-hosted n8n, with the addition of managed backups, automatic scaling, and 24/7 infrastructure monitoring. For organizations that view automation as a strategic capability but infrastructure management as undifferentiated work, Cloud represents the optimal balance of control and convenience.

Enterprise Plan: Advanced Security & Support

The n8n Enterprise plan targets organizations with strict security, compliance, and support requirements. While the underlying automation capabilities match the Community and Cloud editions, Enterprise adds operational features that regulated industries and large-scale deployments demand.

According to n8n’s security documentation, Enterprise features include:

• Single Sign-On (SSO): SAML and LDAP integration for centralized authentication
• Advanced Role-Based Access Control (RBAC): Granular permissions for workflow editing, execution, and credential access
• Dedicated Support SLAs: Guaranteed response times (1-hour for critical issues)
• SOC 2 Type II Compliance: Annual third-party security audits
• Custom Data Retention: Extended execution history and audit logs
• Private Hosting Options: Deploy n8n in your own cloud account (AWS, GCP, Azure) with n8n managing the application layer

The Enterprise plan is designed for organizations where automation failures have material business impact. Financial services firms use it to automate compliance reporting with audit trails that satisfy regulatory requirements. Healthcare organizations leverage the HIPAA-compliant hosting options to process patient data. Technology companies with 500+ employees use the advanced RBAC to ensure junior team members can build workflows without accessing production credentials.

Pricing for Enterprise is custom and based on execution volume, required SLAs, and deployment architecture. Organizations typically engage with Enterprise when self-hosted Community Edition becomes operationally complex at scale, or when Cloud’s shared infrastructure doesn’t meet security requirements.

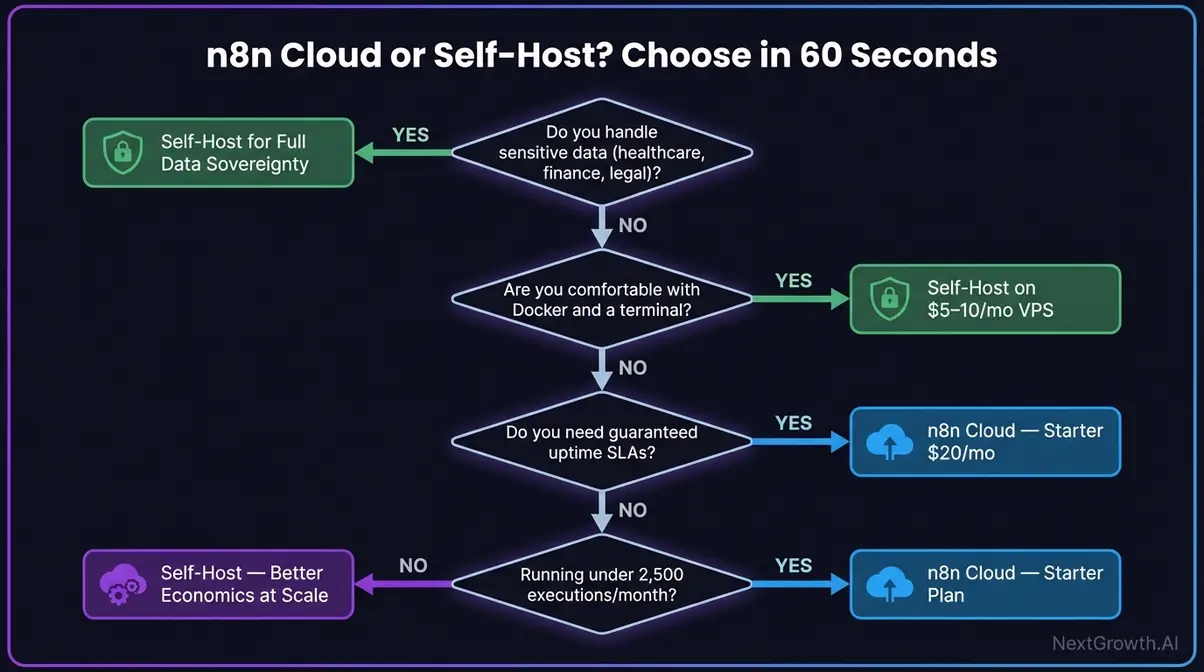

Getting Started: Installing & Setting Up n8n

n8n supports three primary deployment methods, each optimized for different skill levels and use cases. This section provides actionable setup instructions for all three paths, enabling you to start building workflows within minutes regardless of your technical background.

The setup process differs fundamentally from traditional SaaS tools. Instead of simply creating an account, you must decide where and how to run n8n. This decision impacts your long-term costs, operational complexity, and data sovereignty. Choose the path that aligns with your technical capabilities and organizational requirements.

Option 1: Self-Hosting with Docker (Recommended)

Self-hosting with Docker provides the optimal balance of simplicity and control for technical users. Docker packages n8n and all its dependencies into a single container that runs identically across different operating systems and cloud providers. This eliminates the “it works on my machine” problem and simplifies deployment to production infrastructure.

The following Docker Compose configuration provides a production-ready n8n setup with basic authentication enabled:

version: '3.8'
services:
  n8n:
    image: n8nio/n8n
    restart: always
    ports:
      - "5678:5678"
    environment:
      - N8N_BASIC_AUTH_ACTIVE=true
      - N8N_BASIC_AUTH_USER=admin
      - N8N_BASIC_AUTH_PASSWORD=your_secure_password_here
      - N8N_HOST=localhost
      - N8N_PORT=5678
      - N8N_PROTOCOL=http
      - WEBHOOK_URL=http://localhost:5678/
    volumes:
      - ~/.n8n:/home/node/.n8n

version: '3.8'
services:
  n8n:
    image: n8nio/n8n
    restart: always
    ports:
      - "5678:5678"
    environment:
      - N8N_BASIC_AUTH_ACTIVE=true
      - N8N_BASIC_AUTH_USER=admin
      - N8N_BASIC_AUTH_PASSWORD=your_secure_password_here
      - N8N_HOST=localhost
      - N8N_PORT=5678
      - N8N_PROTOCOL=http
      - WEBHOOK_URL=http://localhost:5678/
    volumes:
      - ~/.n8n:/home/node/.n8n

Configuration breakdown:

• `image: n8nio/n8n` — Uses the official n8n Docker image, ensuring you get verified, up-to-date software
• `restart: always` — Automatically restarts the container if it crashes or after system reboots
• `ports: “5678:5678″` — Maps port 5678 on your host machine to port 5678 in the container, making n8n accessible at http://localhost:5678
• `N8N_BASIC_AUTH_ACTIVE=true` — Enables password protection for the n8n interface
• `N8N_BASIC_AUTH_USER` and `N8N_BASIC_AUTH_PASSWORD` — Sets login credentials (change these to secure values)
• `volumes: ~/.n8n:/home/node/.n8n` — Persists workflows, credentials, and execution data to your host filesystem, preventing data loss when containers restart

To deploy this configuration:

1. Install Docker and Docker Compose on your system
2. Save the configuration above as `docker-compose.yml` in a new directory
3. Run `docker-compose up -d` from that directory
4. Access n8n at http://localhost:5678 and log in with your configured credentials

Expected result: Within 30 seconds, n8n should be accessible in your browser. The first login prompts you to create workflows immediately. For production deployments with HTTPS, reverse proxies, and advanced security, see a complete guide to self-hosting n8n with Docker.

This Docker setup forms the foundation for production deployments. You can run it on a $5/month VPS, a corporate server, or a Kubernetes cluster—the configuration remains identical. This portability ensures you’re never locked into a specific cloud provider or infrastructure stack.

Option 2: Desktop App for Local Development

The n8n desktop application provides the fastest path to experimentation for non-technical users or developers who want to test workflows before deploying to production. The app packages n8n as a native application for Windows, macOS, and Linux, eliminating all command-line interaction and Docker complexity.

Download the desktop app from n8n.io/desktop and install it like any standard application. Launch it, and n8n starts automatically on http://localhost:5678 with zero configuration required. The app runs entirely on your local machine, storing all workflows and data in your user directory.

The desktop app is ideal for:

• Testing workflows locally before deploying them to production servers
• Learning n8n without committing to infrastructure setup
• Building personal automations that don’t require 24/7 availability
• Prototyping AI agents using local LLM models via Ollama

However, the desktop app has critical limitations for production use:

• No remote access — Only accessible from the machine where it’s installed
• No high availability — Workflows only run when the app is open
• Manual updates — You must download and install new versions yourself
• Single-user — No collaboration or role-based access control

For production deployments where workflows must run continuously, reliably, and be accessible to multiple team members, self-hosting with Docker or using n8n Cloud is required. The desktop app serves as a development environment, not a production platform.

Option 3: Cloud Sign-Up (5-Minute Start)

n8n Cloud provides the absolute fastest path to production-ready automation, requiring no infrastructure management, Docker knowledge, or security configuration. The entire setup process takes under five minutes from account creation to running your first workflow.

Step-by-step setup:

1. Navigate to n8n.cloud in your browser
2. Click “Start Free” and sign up using email or Google authentication
3. Choose a plan (free trial available for Pro features)
4. Access your dedicated n8n instance at https://your-chosen-name.app.n8n.cloud
5. Start building workflows immediately using the visual editor

Your Cloud instance includes:

• Automatic SSL/TLS encryption for all connections
• Managed backups with point-in-time recovery
• Automatic software updates with zero downtime
• 99.9% uptime SLA (Pro and Enterprise plans)
• Built-in monitoring and alerting
• Collaborative workflow editing with team members

The Cloud offering is best for:

• Non-technical teams who want to focus on building automations, not managing infrastructure
• Rapid prototyping where speed to production outweighs infrastructure control
• Organizations without DevOps resources to maintain self-hosted deployments
• Workflows requiring guaranteed uptime where infrastructure failures have business impact

The trade-off is reduced control: you cannot customize the underlying infrastructure, access server logs directly, or deploy in air-gapped environments. For organizations with strict data residency requirements or those processing highly sensitive data, self-hosting may be mandatory regardless of operational complexity.

Workflow Templates & Use Cases: What You Can Build

n8n’s versatility stems from its extensive template library and integration ecosystem. Instead of building every workflow from scratch, you can leverage pre-built automations created by the community, customize them for your specific needs, and deploy them in minutes. This section demonstrates both the breadth of available templates and the depth of custom workflows you can build.

The n8n Template Library: Pre-Built Automations

The official n8n template library at n8n.io/workflows hosts over 500 community-contributed workflows spanning marketing automation, data synchronization, AI/ML operations, DevOps monitoring, and CRM integrations. Each template includes a complete workflow configuration that you can import directly into your n8n instance with a single click.

Templates are organized by use case category, making it easy to find relevant automations:

• Marketing Automation: Lead scoring, email campaign triggers, social media monitoring, content distribution
• Data Synchronization: CRM updates, database backups, cross-platform data transfers, inventory management
• AI & Machine Learning: Sentiment analysis, content generation, image classification, chatbot backends
• DevOps & Monitoring: Server health checks, deployment automation, incident response, log analysis
• CRM & Sales: Contact enrichment, deal tracking, pipeline reporting, customer onboarding

To use a template, browse the library, click “Use Workflow” on any template, and it automatically imports into your n8n instance with all nodes pre-configured. You then customize connection credentials (API keys, database passwords) and adjust logic to match your specific requirements.

Three particularly popular templates demonstrate the platform’s capabilities:

1. “Sync new Stripe customers to HubSpot” — Automatically creates HubSpot contacts when Stripe processes new customer payments, ensuring your CRM stays synchronized with billing data
2. “Daily website uptime monitor with Slack alerts” — Pings your website every 5 minutes, detects downtime, and sends immediate Slack notifications to your on-call team
3. “AI-powered email responder” — Uses GPT-4 to analyze incoming support emails, categorize by urgency, draft responses, and route to appropriate team members

These templates serve as learning resources even if you don’t use them directly. By examining how experienced users structure workflows, handle errors, and optimize performance, you accelerate your own n8n mastery.

Real-World Use Case: SEO Keyword Research Automation

While templates provide starting points, custom workflows deliver transformative business value. This section walks through a production-grade SEO automation that demonstrates n8n’s capabilities for complex, multi-step data processing.

The workflow automates keyword research by pulling data from SEMrush’s API, enriching it with custom calculations, filtering low-opportunity keywords, and storing results in Airtable for content planning. This automation replaces a manual process that previously consumed 5+ hours per week.

Workflow architecture:

1. Trigger Node (Schedule): Executes daily at 6 AM to ensure fresh data for morning planning sessions
2. HTTP Request Node: Calls SEMrush API with your target domain and retrieves keyword metrics (search volume, difficulty, CPC)
3. Code Node (JavaScript): Calculates a custom “opportunity score” using the formula: `(search_volume * 0.6) – (difficulty * 0.4)` to identify high-value, low-competition keywords
4. Filter Node: Removes keywords with search volume below 500/month and difficulty above 60, focusing on achievable targets
5. Airtable Node: Writes filtered results to a database with fields for keyword, volume, difficulty, opportunity score, and research date
6. Slack Node: Sends a summary notification to your content team with the count of new opportunities discovered

The Code node demonstrates n8n’s extensibility. Instead of being limited to pre-built transformations, you can write custom JavaScript to implement any business logic:

// Calculate opportunity score for each keyword
const items = $input.all();
return items.map(item => {
  const volume = item.json.search_volume;
  const difficulty = item.json.keyword_difficulty;
  const opportunity = (volume * 0.6) - (difficulty * 0.4);

  return {
    json: {
      ...item.json,
      opportunity_score: Math.round(opportunity)
    }
  };
});

// Calculate opportunity score for each keyword
const items = $input.all();
return items.map(item => {
  const volume = item.json.search_volume;
  const difficulty = item.json.keyword_difficulty;
  const opportunity = (volume * 0.6) - (difficulty * 0.4);

  return {
    json: {
      ...item.json,
      opportunity_score: Math.round(opportunity)
    }
  };
});

This workflow runs autonomously every day, building a continuously updated database of keyword opportunities without manual research. Content teams use this data to prioritize articles, identify content gaps, and track keyword trends over time. For the complete implementation with code snippets and API configurations, see a real-world SEO automation use case.

Integrations: Connecting 500+ Apps and APIs

n8n’s integration ecosystem spans 500+ pre-built nodes covering virtually every major SaaS application and API. These integrations fall into several categories based on common business functions:

CRM & Sales:

• Salesforce, HubSpot, Pipedrive for customer relationship management
• Stripe, PayPal, Square for payment processing
• Calendly, Acuity for scheduling and appointment management

Marketing & Communication:

• Mailchimp, ActiveCampaign, SendGrid for email marketing
• Google Ads, Facebook Ads, LinkedIn Ads for paid advertising
• Slack, Discord, Microsoft Teams for team communication

Productivity & Data:

• Notion, Airtable, Google Sheets for databases and documentation
• Dropbox, Google Drive, OneDrive for file storage
• Jira, Asana, Monday.com for project management

AI & Machine Learning:

• OpenAI (GPT-4, DALL-E), Anthropic (Claude), Google (Gemini) for LLM capabilities
• Pinecone, Qdrant, Weaviate for vector databases
• Hugging Face for open-source model hosting

Developer & DevOps:

• GitHub, GitLab, Bitbucket for version control
• AWS, Google Cloud, Azure for cloud infrastructure
• Datadog, Prometheus, Grafana for monitoring

If an application doesn’t have a native n8n node, you can use the HTTP Request node to call any REST API directly. This universal fallback ensures you’re never blocked by missing integrations. Many users build custom nodes for internal APIs and contribute them back to the community, continuously expanding the ecosystem.

The combination of pre-built integrations and custom code support makes n8n uniquely versatile. You can start with templates, customize with visual editing, and extend with code when needed—all within the same platform.

Enterprise Security & Scalability: Production-Ready n8n

Deploying n8n in production environments requires rigorous attention to security hardening, scalability architecture, and operational reliability. This section provides the advanced guidance that competitors completely lack, addressing the critical questions enterprises ask before committing to self-hosted automation infrastructure.

Security Best Practices: Credential Management & Network Hardening

Self-hosted n8n instances handle sensitive data—API keys, database passwords, customer information, and business logic. Implementing comprehensive security controls protects this data from unauthorized access, credential theft, and network attacks.

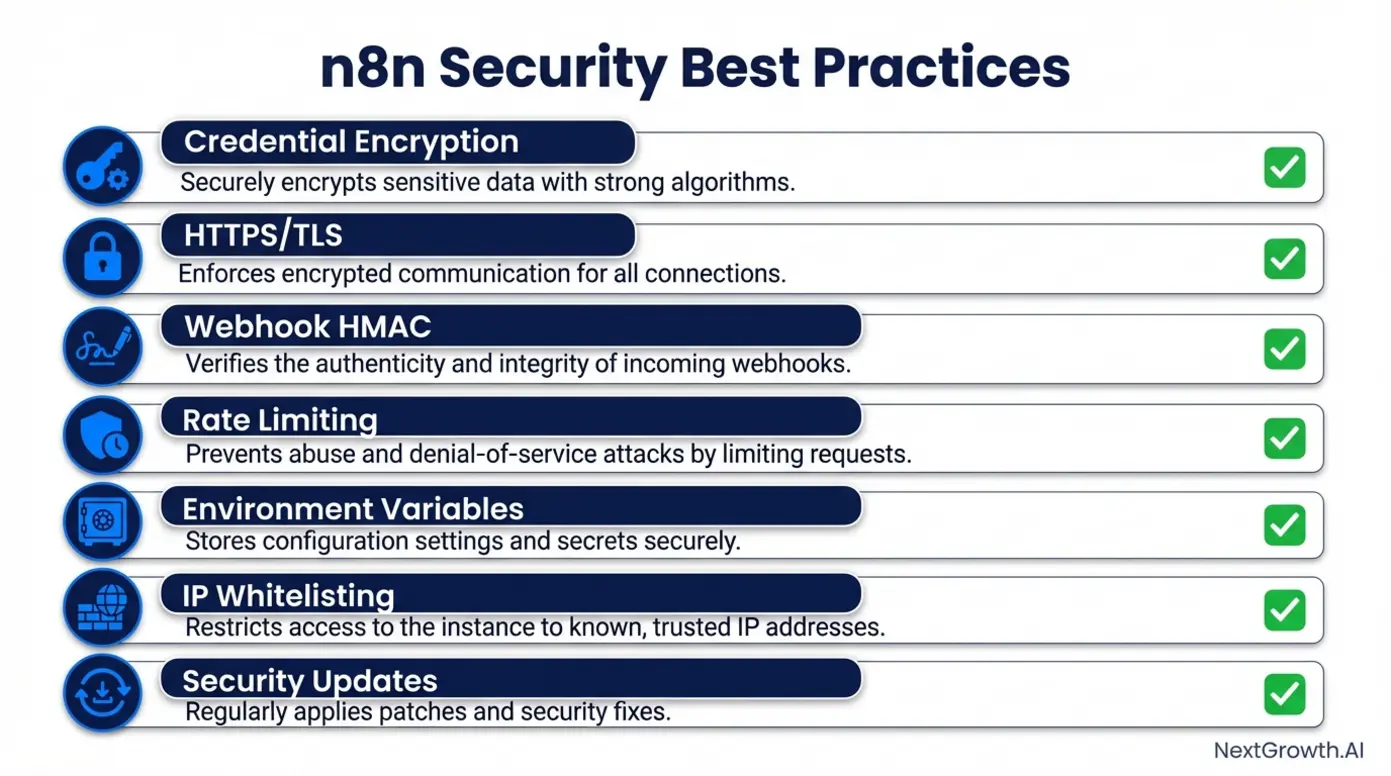

Use the checklist below to audit your n8n instance against production security standards:

Credential Encryption
Enable n8n’s built-in credential encryption by setting the `N8N_ENCRYPTION_KEY` environment variable to a secure, randomly generated string. This encrypts all stored credentials (API keys, passwords, tokens) at rest in the database. Without this key, credentials are stored in plain text, creating catastrophic risk if your database is compromised. Generate a secure key using: `openssl rand -base64 32`

HTTPS/TLS for All Endpoints
Never expose n8n’s HTTP port directly to the internet. Always run n8n behind a reverse proxy (Nginx, Traefik, Caddy) that terminates SSL/TLS connections. This encrypts all traffic between users and your n8n instance, preventing credential interception and session hijacking. Use Let’s Encrypt for free, automated SSL certificate management.

Webhook HMAC Validation
When using webhook triggers, implement HMAC signature validation to verify that incoming requests originate from legitimate sources. Without this, attackers can trigger your workflows by guessing webhook URLs. Configure HMAC secrets in your webhook providers (GitHub, Stripe, etc.) and validate signatures in n8n’s webhook nodes before processing data.

Reverse Proxy with Rate Limiting
Deploy Nginx or Traefik in front of n8n with rate limiting rules to prevent brute-force attacks and denial-of-service attempts. Example Nginx configuration limits each IP to 10 requests per second: `limit_req_zone $binary_remote_addr zone=n8n:10m rate=10r/s;`

Environment Variables for Secrets
Never hardcode API keys, database passwords, or other secrets directly in workflow nodes. Instead, use environment variables that n8n can reference via `{{$env.VARIABLE_NAME}}` syntax. This separates secrets from workflow logic, enabling you to rotate credentials without modifying workflows and preventing accidental exposure when exporting workflows for sharing.

IP Whitelisting for Admin Access
Restrict access to n8n’s admin interface to known IP addresses using firewall rules or reverse proxy configuration. For cloud deployments, use VPN or bastion hosts to ensure only authorized networks can reach the admin interface. This prevents unauthorized access even if credentials are compromised.

Regular Security Updates
Subscribe to n8n’s GitHub releases and security advisories. Apply security patches within 48 hours of release. The self-hosted model gives you control, but also responsibility for keeping software current. Automate update notifications using GitHub’s watch feature or RSS feeds.

According to n8n’s security documentation, these practices align with the platform’s own security posture and are recommended for all production deployments. Organizations in regulated industries should additionally implement audit logging, network segmentation, and periodic penetration testing.

Scaling n8n: Queue Mode & High-Throughput Architectures

The default n8n deployment runs all workflows within a single process. This works well for small-scale deployments (under 1,000 executions per day) but creates bottlenecks as workflow complexity and volume increase. Queue Mode: solves this by separating workflow execution from the main n8n process, enabling horizontal scaling and fault tolerance.

In Queue Mode, the main n8n instance acts as a coordinator that receives workflow triggers and adds them to a Redis queue. Separate worker processes pull jobs from the queue, execute workflows, and report results back to the main instance. This architecture provides several critical advantages:

Horizontal Scalability: Add more worker nodes to increase execution capacity. A single main instance can coordinate dozens of workers, each handling workflows in parallel. This enables linear scaling—doubling workers approximately doubles throughput.

Fault Tolerance: If a worker crashes mid-execution, the job remains in the queue and gets retried by another worker. This prevents workflow failures due to transient infrastructure issues like memory exhaustion or network timeouts.

Resource Isolation: Heavy workflows (AI processing, large data transformations) run on dedicated workers without impacting the main instance’s responsiveness. The admin interface remains fast even when workers are under heavy load.

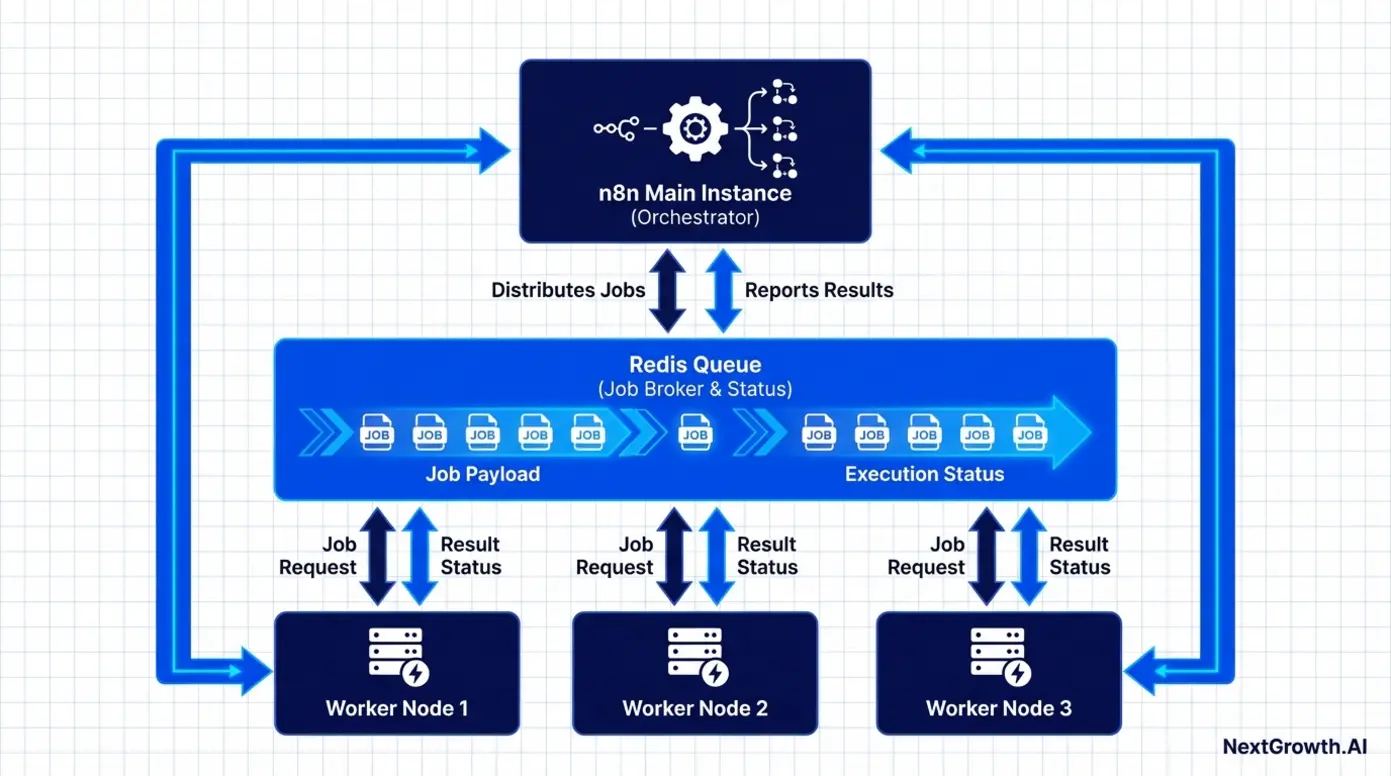

The diagram below illustrates Queue Mode’s architecture:

According to an official benchmark test, n8n’s Queue mode demonstrated significant performance, handling 72 requests per second in one test configuration as of 2025. Real-world deployments report handling 10,000+ daily executions with three worker nodes and a single Redis instance.

When to implement Queue Mode:

• Workflow volume exceeds 1,000 executions per day
• Individual workflows contain heavy processing (AI inference, large file operations, complex data transformations)
• Execution failures occur due to memory or CPU constraints
• You require guaranteed workflow execution even during infrastructure failures

For detailed implementation instructions including Docker Compose configurations for multi-worker deployments, see how to scale a self-hosted instance for production.

Monitoring, Logging, and Reliability

Production n8n deployments require comprehensive observability to detect failures, diagnose performance issues, and maintain SLAs. The platform provides built-in execution logging, but enterprises typically integrate external monitoring systems for long-term retention and advanced analytics.

Execution Logs
n8n stores detailed logs for every workflow execution, including input data, output data, execution time, and error messages. The Community Edition retains logs for 7 days; Cloud and Enterprise plans extend this to 30+ days. These logs are accessible via the n8n UI and can be queried programmatically via the API.

For production environments, export logs to external systems for long-term retention and compliance:

• Elasticsearch + Kibana: Store logs in Elasticsearch for full-text search and visualization in Kibana dashboards
• Loki + Grafana: Lightweight log aggregation optimized for Kubernetes environments
• CloudWatch/Stackdriver: Native cloud provider logging for AWS/GCP deployments

Metrics & Monitoring
Integrate n8n with Prometheus to collect metrics on execution counts, success rates, execution duration, and queue depth. Visualize these metrics in Grafana dashboards to identify performance trends and capacity constraints. Set up alerts for:

• Execution failure rate exceeds 5%
• Queue depth exceeds 100 pending jobs
• Average execution time increases by 50%
• Worker node CPU/memory usage exceeds 80%

Error Tracking
Integrate Sentry or similar error tracking platforms to capture detailed stack traces and context when workflows fail. This accelerates debugging by providing the exact code path and variable state at the point of failure.

Health Check Workflows
Create dedicated “canary” workflows that run every 5 minutes to verify critical system components. A typical health check workflow might:

1. Test database connectivity
2. Verify external API accessibility
3. Validate credential encryption
4. Check worker node availability (in Queue Mode)
5. Send Slack/email alerts if any check fails

For detailed guidance on implementing production monitoring, see understanding a core concept like n8n monitoring.

These operational practices transform n8n from a development tool into a mission-critical platform capable of supporting enterprise-scale automation. Organizations running 50,000+ executions per day rely on these patterns to maintain 99.9%+ uptime and sub-second response times.

n8n vs. Competitors: How It Stacks Up

Choosing the right automation platform requires understanding not just features, but total cost of ownership, operational complexity, and strategic flexibility. This section provides data-driven comparisons that help you make an informed decision based on your specific requirements and constraints.

n8n vs. Zapier: Cost, Flexibility, and Control

Zapier pioneered the automation-as-a-service category and remains the market leader for non-technical users. However, its pricing model and architectural limitations create significant disadvantages for technical teams and high-volume use cases.

Cost Analysis:
For a realistic workload of 10,000 tasks per month, n8n’s self-hosted model costs approximately $10 for a DigitalOcean VPS, while Zapier’s Professional plan costs $49/month. At 50,000 tasks per month, the gap widens dramatically: n8n might require a $20/month VPS for increased resources, while Zapier’s Team plan jumps to $299/month. Over a year, this represents $3,588 in savings for n8n.

Flexibility Comparison:
Zapier’s Code by Zapier step allows basic JavaScript, but with severe limitations: no npm packages, 1-second execution timeout, and restricted API access. n8n’s Code node supports full Node.js with unlimited npm packages, 5-minute default timeout (configurable), and unrestricted API calls. This enables complex data transformations, AI model inference, and custom business logic that Zapier cannot execute.

AI Capabilities:
n8n’s native AI agent builder treats LLMs as reasoning engines that can orchestrate tools autonomously. Zapier requires manual workflow design for every AI interaction, with no agent-based decision making. For organizations building agentic AI systems, this is not a feature gap—it’s a fundamental architectural difference.

Verdict: Choose n8n if you need full control, custom logic, AI agent capabilities, or cost efficiency at scale. Choose Zapier if you prioritize ease of use, have minimal technical resources, and are willing to pay premium pricing for simplicity.

n8n vs. Make (Integromat): Feature Comparison

Make (formerly Integromat) competes directly with n8n in the visual automation space, offering a similar node-based editor and extensive integration library. However, Make’s SaaS-only model and pricing structure create different trade-offs.

Pricing Model Comparison:
Make charges per operation (each action in a workflow), while n8n Cloud charges per execution (complete workflow run). For a 10-step workflow executed 1,000 times per month, Make counts this as 10,000 operations, while n8n counts it as 1,000 executions. This pricing difference compounds as workflows become more complex.

AI Integration:
Make requires manual HTTP requests to AI APIs with custom parsing of responses. n8n’s AI agent nodes abstract this complexity and add autonomous decision-making capabilities. For teams building AI-powered automations, n8n’s native support eliminates weeks of custom development.

UI Polish:
Make’s interface is often praised for its visual clarity and data flow visualization. n8n’s interface is functional but less polished. For non-technical users, this UX difference can impact adoption and productivity.

Verdict: n8n and Make offer similar core capabilities, but n8n wins on AI features, self-hosting flexibility, and cost efficiency at scale. Make offers a more polished interface and may be preferable for teams that prioritize UX over infrastructure control.

When to Choose n8n Over Other Automation Tools

The automation platform landscape includes dozens of tools, each optimized for different use cases and user profiles. This decision framework helps you identify when n8n is the optimal choice versus when alternatives may be more appropriate.

Choose n8n if:

• Compliance requires self-hosting: Your industry (healthcare, finance, government) mandates that customer data never leaves your infrastructure
• You’re building AI agents: You need autonomous workflows that can reason, retrieve data, and execute multi-step tasks without predefined logic
• Custom code is essential: Your workflows require complex data transformations, API integrations, or business logic that visual editors cannot express
• Cost efficiency at scale matters: You’re running 10,000+ workflow executions per month and need to avoid per-task pricing
• Data sovereignty is critical: You need complete control over where data is stored, processed, and transmitted
• You have DevOps capabilities: Your team can manage Docker deployments, security updates, and infrastructure monitoring

Choose Zapier if:

• Simplicity is paramount: Your team is non-technical and needs the absolute easiest setup with zero infrastructure knowledge
• Speed to first workflow matters more than cost: You need to deploy automations in minutes without any learning curve
• Pre-built integrations cover 100% of your needs: Zapier’s extensive app directory includes every tool you use
• Vendor lock-in is acceptable: You’re willing to accept proprietary infrastructure in exchange for convenience

Choose Make if:

• Visual data flow is critical: You need the most polished, intuitive interface for complex workflow visualization
• You want SaaS convenience with advanced features: You need more flexibility than Zapier but don’t want to self-host
• Operation-based pricing fits your use case: Your workflows are simple (few steps) but run frequently

This framework clarifies that n8n isn’t universally superior—it’s optimized for technical teams that value control, flexibility, and cost efficiency over simplicity and managed services. Understanding these trade-offs prevents costly platform migrations and ensures you choose the tool that aligns with your organization’s capabilities and priorities.

When n8n Might Not Be the Right Fit: Limitations & Alternatives

While n8n excels in many scenarios, certain use cases expose limitations that may make alternative approaches more appropriate. Acknowledging these constraints enables you to make informed decisions and avoid costly mismatches between your requirements and the platform’s capabilities.

When to Consider Alternatives or Professional Help

Extremely High-Throughput Real-Time Processing
If your workflows require processing more than 10,000 executions per minute with sub-100ms latency, n8n’s architecture may introduce bottlenecks. The platform is optimized for business process automation, not real-time event streaming. For use cases like financial trading systems, IoT sensor processing, or real-time fraud detection, consider specialized stream processing platforms like Apache Kafka, Apache Flink, or AWS Kinesis. If you must use n8n for these scenarios, consult a DevOps engineer to architect a custom Queue Mode deployment with Kubernetes autoscaling and dedicated Redis clusters.

Regulated Industry Compliance
If you’re deploying n8n in healthcare (HIPAA), finance (SOC 2, PCI-DSS), or government environments, self-hosting introduces compliance obligations that may exceed your team’s capabilities. While n8n provides the technical foundation for secure deployments (encryption, audit logging, access controls), achieving and maintaining compliance requires specialized expertise. Consider consulting a compliance specialist to audit your deployment architecture, implement required controls, and establish ongoing monitoring. Alternatively, n8n’s Enterprise plan includes SOC 2 compliance and dedicated support for regulated industries.

Zero Technical Expertise
n8n’s self-hosted model requires basic familiarity with Docker, environment variables, and command-line tools. If your team has zero technical experience and no bandwidth to learn these concepts, the operational burden may outweigh the benefits. In these cases, fully managed SaaS tools like Zapier provide faster time-to-value despite higher long-term costs. The trade-off is simplicity versus control—only you can determine which matters more for your organization.

Complex Enterprise Integrations
While n8n supports 500+ integrations, some enterprise systems (SAP, Oracle, legacy mainframes) require specialized connectors with complex authentication, data transformation, and error handling. If your workflows depend heavily on these systems and you lack the engineering resources to build custom integrations, enterprise iPaaS platforms like MuleSoft, Workato, or Boomi may be more appropriate. These platforms provide certified, pre-built connectors and dedicated support for enterprise integration patterns that would require weeks of custom development in n8n.

Potential Drawbacks of Self-Hosting

Ongoing Maintenance Burden
Self-hosting requires continuous operational attention: applying security patches, monitoring performance, backing up data, and troubleshooting failures. If your team lacks DevOps expertise or is already at capacity with existing infrastructure, this burden can lead to neglected updates, security vulnerabilities, and reliability issues. The n8n Cloud plan eliminates this operational overhead by providing managed hosting, automatic updates, and 24/7 infrastructure monitoring. For organizations where automation is strategic but infrastructure management is not, Cloud represents the optimal balance.

Mission-Critical Reliability Requirements
For workflows that directly impact revenue (payment processing, order fulfillment) or customer experience (support ticket routing, real-time notifications), self-hosted infrastructure introduces risk. While n8n’s Queue Mode provides fault tolerance, achieving 99.99% uptime requires sophisticated deployment patterns: multi-region redundancy, automated failover, and comprehensive monitoring. If your team cannot implement and maintain these patterns, consider hiring an n8n consultant to audit your setup or migrating to the Cloud/Enterprise plan with guaranteed SLAs.

Performance Troubleshooting Complexity
When workflows fail or perform poorly, diagnosing root causes requires deep understanding of n8n’s execution model, database queries, and network topology. If your team lacks this expertise, troubleshooting can consume days of trial-and-error debugging. Professional troubleshooting services can identify issues in hours that internal teams might spend weeks investigating. For organizations where workflow downtime has material business impact, maintaining a relationship with n8n consultants or purchasing Enterprise support provides insurance against extended outages.

Database Scalability Limits
n8n stores workflow definitions, execution history, and credentials in a PostgreSQL or SQLite database. As execution volume grows, database performance can become a bottleneck. While PostgreSQL scales well, optimizing queries, implementing connection pooling, and managing database growth requires database administration expertise. Organizations running 100,000+ executions per day should consult a database specialist to implement proper indexing, partitioning, and archival strategies.

These limitations don’t invalidate n8n’s value proposition—they clarify when additional expertise or alternative approaches are necessary. By understanding these boundaries, you can make informed decisions about deployment architecture, resource allocation, and when to seek professional guidance.

Frequently Asked Questions

What is n8n used for?

n8n is used to automate repetitive tasks by visually connecting apps, APIs, and AI models into workflows. Common use cases include syncing data between CRMs, automating marketing campaigns, building AI-powered chatbots, and orchestrating DevOps pipelines. Because n8n is self-hostable and supports custom code, it’s particularly popular among technical teams and enterprises that need full control over their automation infrastructure. For example, a marketing team might use n8n to automatically pull leads from Facebook Ads, enrich them with Clearbit data, and push them to Salesforce—all without writing a single API integration from scratch.

Is n8n a Chinese company?

No, n8n is not a Chinese company—it was founded in Berlin, Germany, in 2019. The company is headquartered in Germany and operates as a global, open-source project with contributors worldwide. Its fair-code licensing model and European data protection standards make it a strong choice for privacy-conscious organizations. This geographic origin is relevant for enterprises evaluating compliance with GDPR and other EU regulations.

What does n8n stand for?

n8n is a numeronym for ‘Nodemation,’ which combines ‘Node’ (referring to the node-based visual editor) and ‘Automation’ (its core function). The name reflects the platform’s architecture: workflows are built by connecting individual ‘nodes,’ each representing a specific action or trigger. This modular design makes it easy to visualize and modify complex automations. The numeronym format (n-eight-n) follows the same pattern as ‘i18n’ (internationalization) and ‘k8s’ (Kubernetes), common in developer tools.

Can I use n8n for free?

Yes, you can use n8n for free by self-hosting the open-source Community Edition on your own server or computer. The software itself is free under a fair-code license, but you’re responsible for hosting costs (e.g., a DigitalOcean VPS at approximately $10/month or running it locally at no cost). This model gives you unlimited workflows, executions, and full feature access without vendor lock-in. If you prefer managed hosting, sign up for a free Cloud trial at n8n.cloud, though paid plans start at $20/month for production use.

Is n8n considered AI?

n8n is not AI itself, but it is a platform specifically designed to build and orchestrate AI-powered workflows and autonomous agents. While n8n is fundamentally a workflow automation tool, its standout capability is connecting AI models (like GPT-4, Claude, or local LLMs) with other tools and APIs to create intelligent, decision-making systems. For example, you can build an AI agent that reads emails, extracts key information, and automatically updates a CRM—all without writing code. This makes n8n a critical tool for teams implementing agentic AI, RAG pipelines, or LLM-powered automations in production.

How is n8n pronounced?

n8n is pronounced phonetically as ‘en-eight-en.’ The name is a numeronym, similar to ‘i18n’ (internationalization) or ‘k8s’ (Kubernetes), where the number represents the count of letters between the first and last character. This pronunciation is widely used in the n8n community and official documentation. If you’re presenting to a team or discussing it verbally, ‘en-eight-en’ is the standard way to say it.

Start Building Smarter Workflows with n8n Today

n8n is a fair-code, self-hostable automation platform with a built-in AI agent builder, 500+ integrations, and flexible pricing models that scale from solo developers to global enterprises. It’s designed for teams that need full control over their automation infrastructure, custom logic capabilities, and the ability to build intelligent, autonomous workflows that traditional SaaS tools cannot support.

Unlike proprietary SaaS tools that meter every execution and lock your data behind their infrastructure, n8n puts you in the driver’s seat. You own your data, your infrastructure, and your automation logic. Whether you’re a solo developer automating client reporting, a mid-sized marketing team orchestrating multi-channel campaigns, or an enterprise DevOps organization building mission-critical incident response systems, n8n scales with your needs without imposing artificial limits or escalating costs.

Ready to get started? If you’re technical, self-host the Community Edition with Docker in under 5 minutes using the configuration provided in this guide. If you prefer managed hosting, sign up for a free Cloud trial at n8n.cloud and start building workflows immediately. For advanced use cases like AI agents, enterprise security hardening, or production scalability, explore our in-depth tutorials on scaling, monitoring, and building sophisticated automations that deliver measurable business value.
